Counter, Rate Meter & Jam Detector


Jam Detector

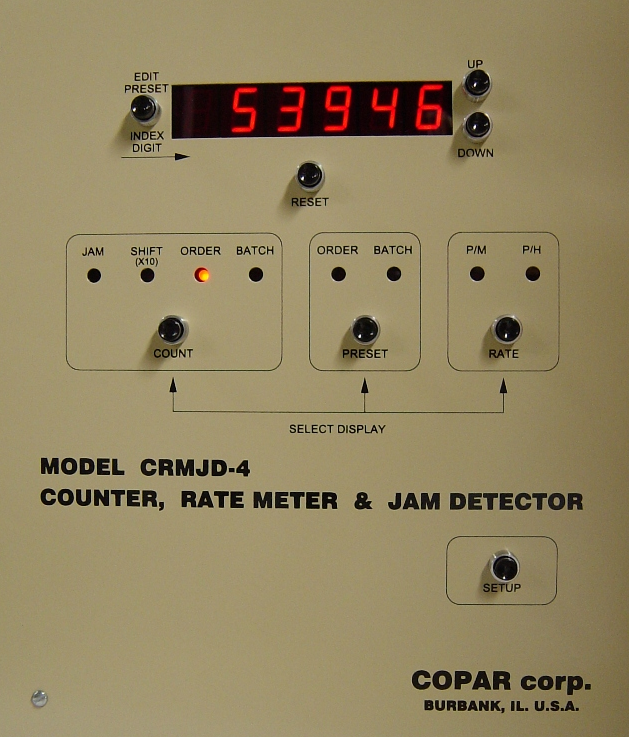

This new multi-functional system is a programmable logic based unit that monitors production rates, detects jammed/missing product and controls the stop, feed, order and batch outputs. An encoder provides belt travel information. This data allows the CRMJD-4 to determine machine size, carton size, photo location, and ratio among other things. A six digit display shows processed information in relevant values, such as: on going counts of Jams, Shifts, Order and Batch; presets of Order and Batch; rates in Pieces/Minutes or Pieces/Hour. Values viewed in the display can be reset and or edited by manipulating a series of push buttons. Although the CRMJD was developed primarily for Flexo gluers, it has application on virtually any piece of production equipment.



  • Jam Detection – Provides number and location of jam ups
  • Batch Count – Programmable with a preset value to activate a relay
  • Order Count – Displays current order count
  • Shift Count – Total pieces per shift
  • Rate Meter – Display pieces per hour and pieces per minute
  • Photo Eyes – Three standard: up to 7 can be used
